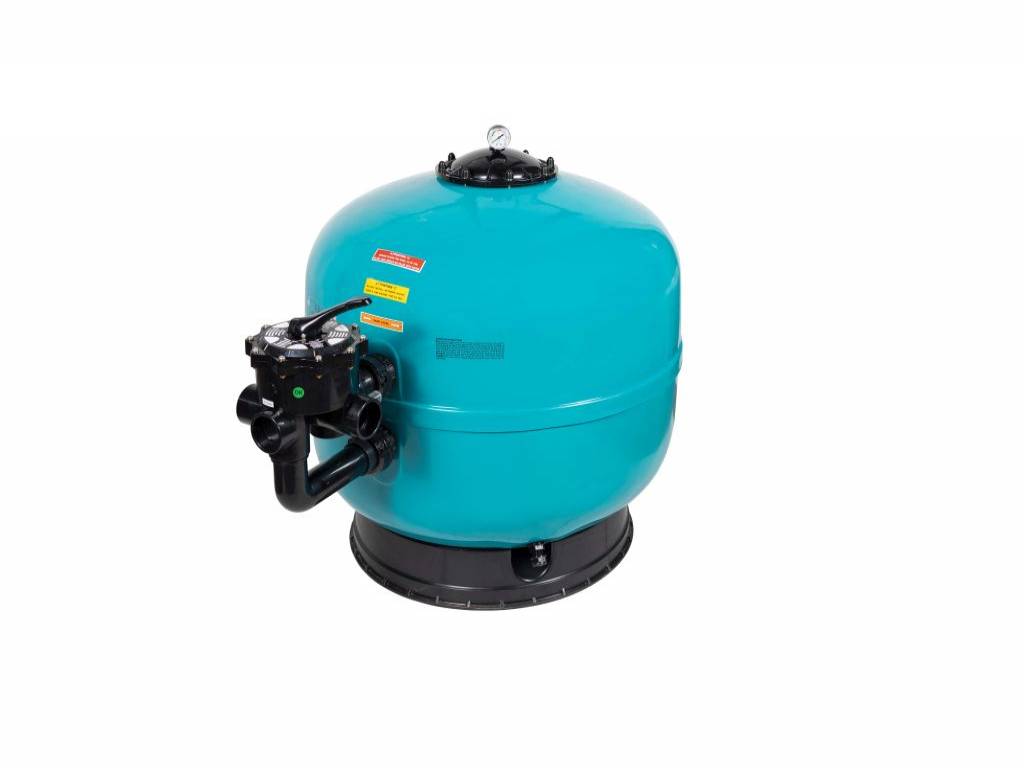

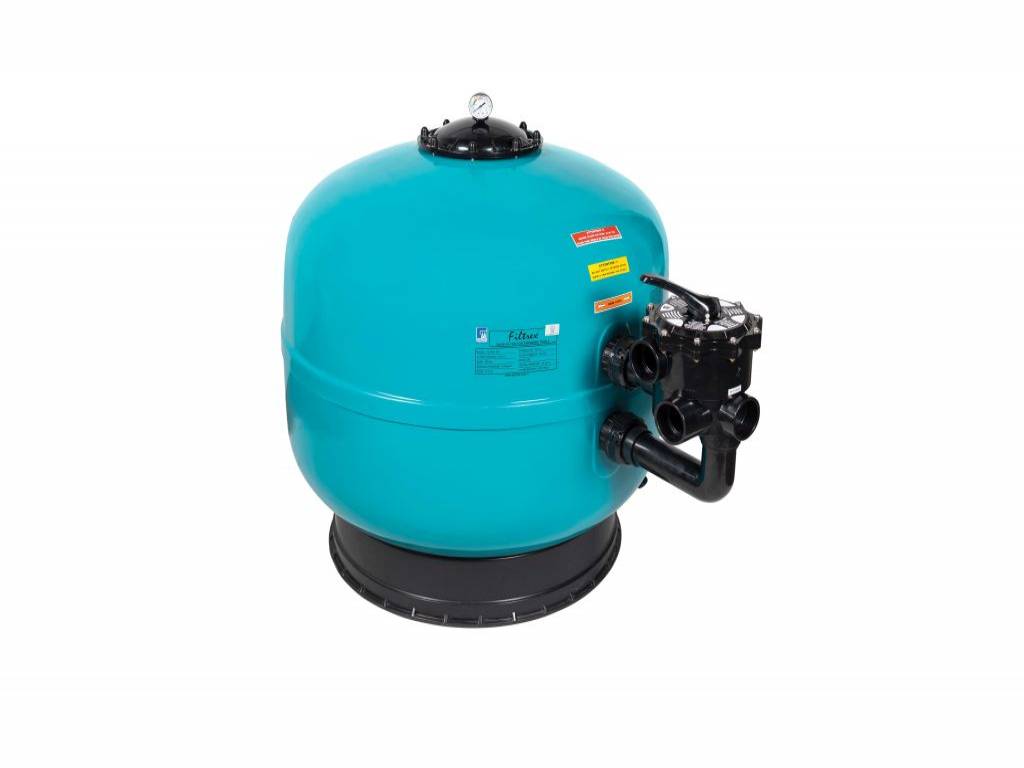

GEMAS “FILTREX” SAND FILTERS.

GEMAS “FILTREX” SAND FILTERS.

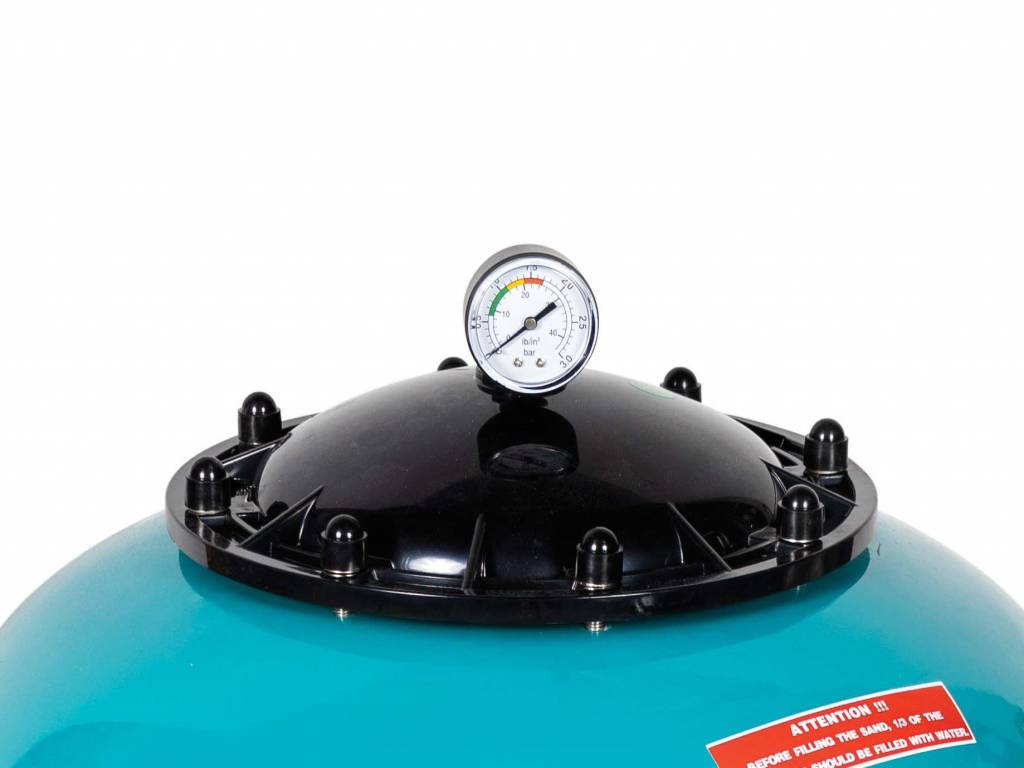

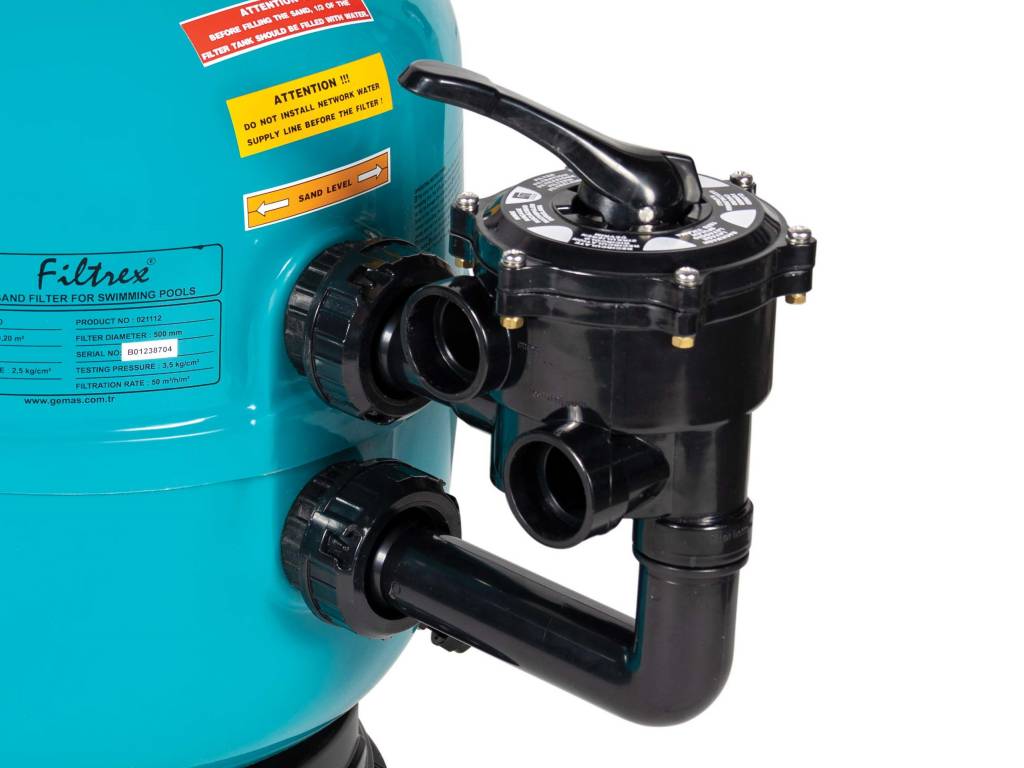

Filter shell made of fiberglass reinforced laminated polyester, including pressure gauge, side mounted multiport valve and air purge. Test pressure 3,5 kg/cm2. Max. operation pressure 2,5 kg/cm2. Filtration rate: 50 m3 /h / m2.

description code price
(€)
weight
(kg)
volume
(m³)
SPARE PART
Ø450 mm -1,5" multiport side valve-8 m³/h 021111 Sign in to see the price 15.400 0.145 View
Ø500 mm -1,5" multiport side valve-10 m³/h 021112 Sign in to see the price 17.500 0.215 View
Ø630 mm -1,5" multiport side valve-16 m³/h 021113 Sign in to see the price 22.800 0.325 View
Ø710 mm - 2" multiport side valve-20 m³/h 021114 Sign in to see the price 30.000 0.470 View
Ø830 mm - 2" multiport side valve-27 m³/h 021115 Sign in to see the price 38.600 0.665 View
Ø900 mm - 2" multiport side valve-32 m³/h 021116 Sign in to see the price 46.300 0.905 View
Ø1000 mm, Ø75 Slip union connection Except multiport valve - 39 m³/h 021117 Sign in to see the price 63.200 1.021 View
Ø1000 mm Large Lid without valve, 2,5" connection - 39 m³/h 021117LF Sign in to see the price 63.200 1.021
Ditto, Large Lid, - 39 m³/h 021117L Sign in to see the price

User and Installation Guide

Installation Guide

Technical Data Sheet / Brochure

Fıltrex Sand Fılters Brochure

Certificates of Quality

Quality Conforming Certificate
