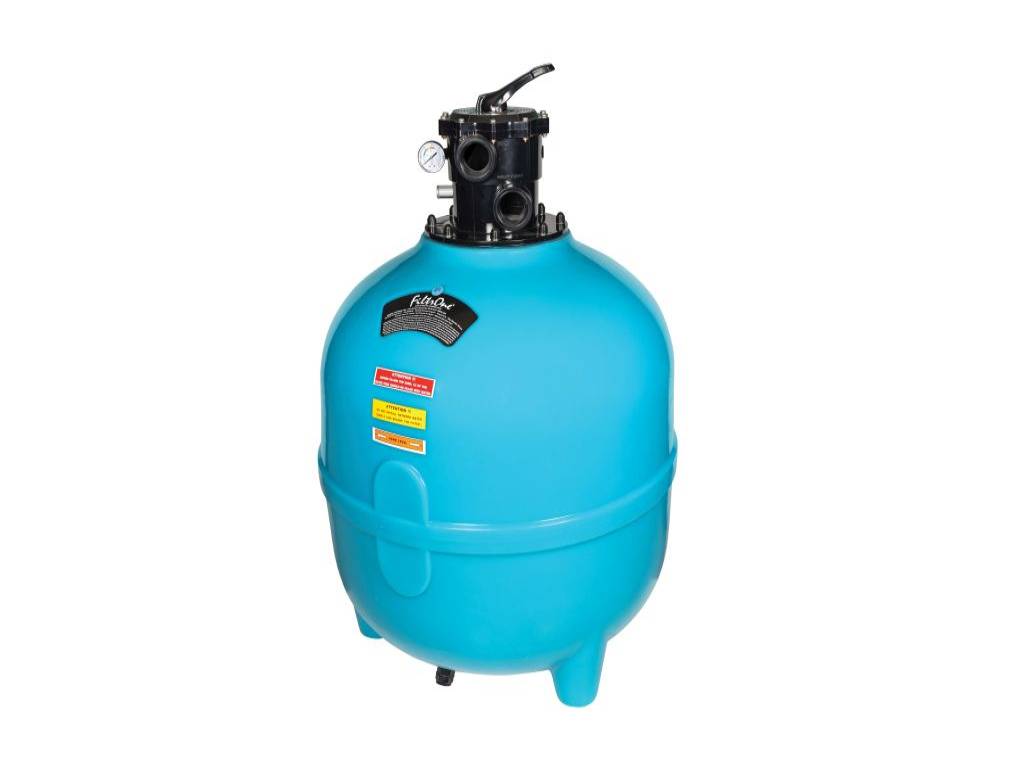

GEMAS “FILTRONE” PE PLASTIC SAND FILTERS
GEMAS “FILTRONE” PE PLASTIC SAND FILTERS

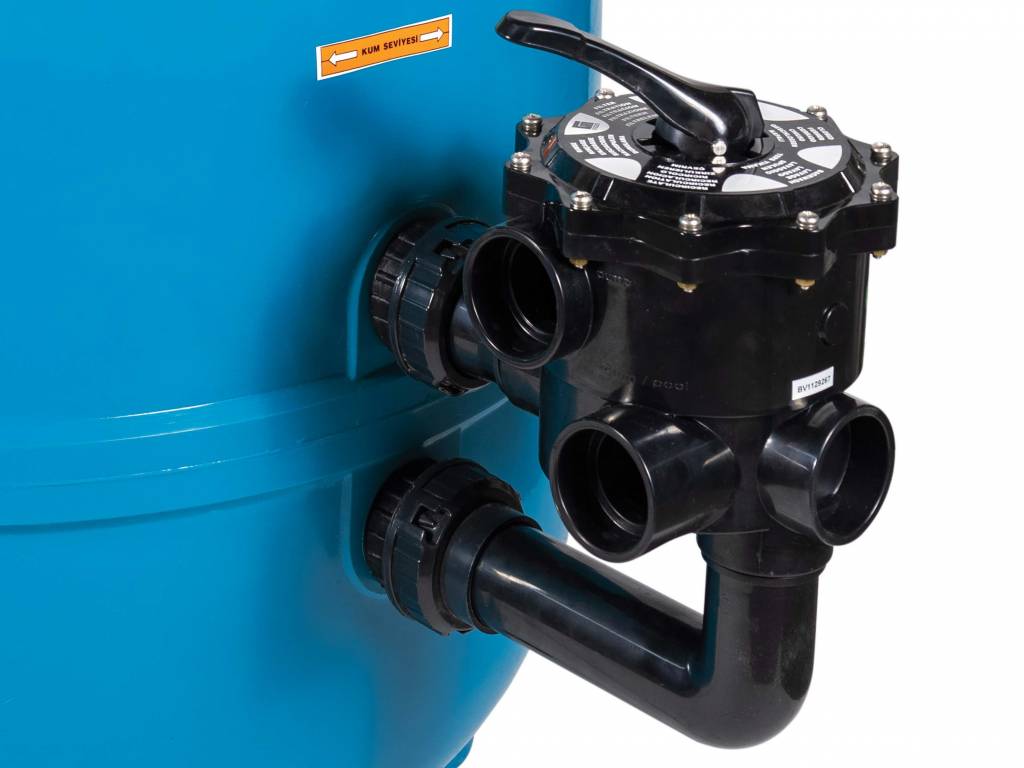

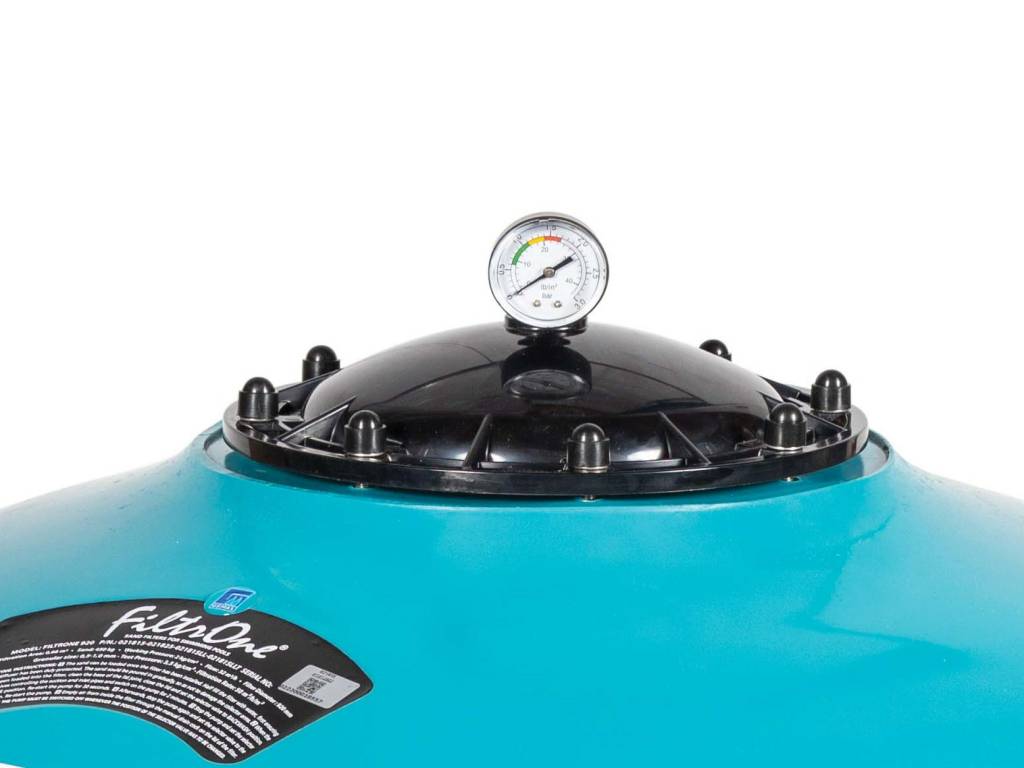

Filter shell made of PE Plastic by Rotational Moulding. One-piece body, including pressure gauge, side mounted multiport valve and air purge. Optional Transparent Bolted Lid. Two years body warranty. Test pressure 3,5 kg/cm². Max. operation pressure 2 kg/cm². Filtration rate: 50 m³/h/m².
| description | code | price (€) |
weight (kg) |
volume (m³) |
SPARE PART
|
|---|---|---|---|---|---|
| Ø560 mm - 12 m³/h 1,5" m. valve | 021818 | Sign in to see the price | 16.500 | 0.215 | |
| Ø615 mm - 15 m³/h 1,5" m. valve | 021813 | Sign in to see the price | 19.500 | 0.325 | View |
| Ø760 mm - 22 m³/h 2" m. valve | 021814 | Sign in to see the price | 26.500 | 0.440 | View |
| Ø920 mm - 33 m³/h 2" m. valve | 021815 | Sign in to see the price | 37.500 | 0.790 | View |
| Ø615 mm - 15 m³/h 1,5" top m. valve | 021823 | Sign in to see the price | 19.500 | 0.325 | |
| Ø760 mm - 22 m³/h 2" top m. valve | 021824 | Sign in to see the price | 24.500 | 0.440 | |
| Ø920 mm - 33 m³/h 2" top m. valve | 021825 | Sign in to see the price | 35.500 | 0.790 | |
| Ø560 mm - 12 m³/h 1,5" top m. valve | 021826 | Sign in to see the price | 14.500 | 0.215 |
User and Installation Guide |
||
| User guide | ||
Technical Data Sheet / Brochure |
||
| Technical Document | ||
Certificates of Quality |
||
| Quality Conforming Certificate | ||
