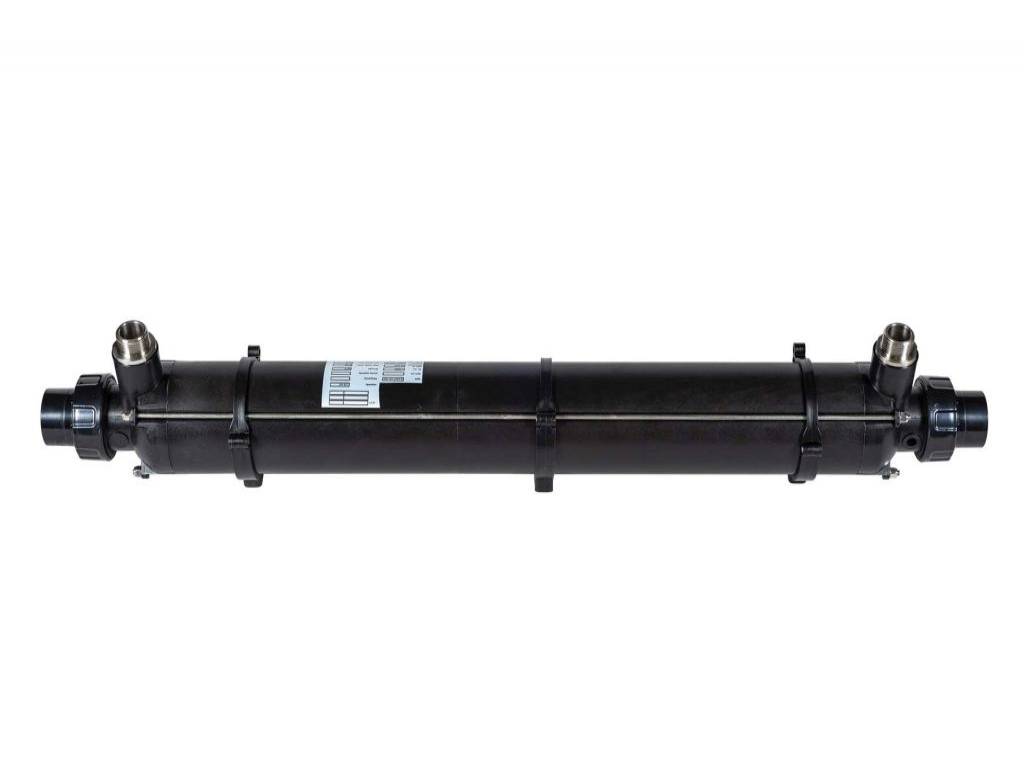

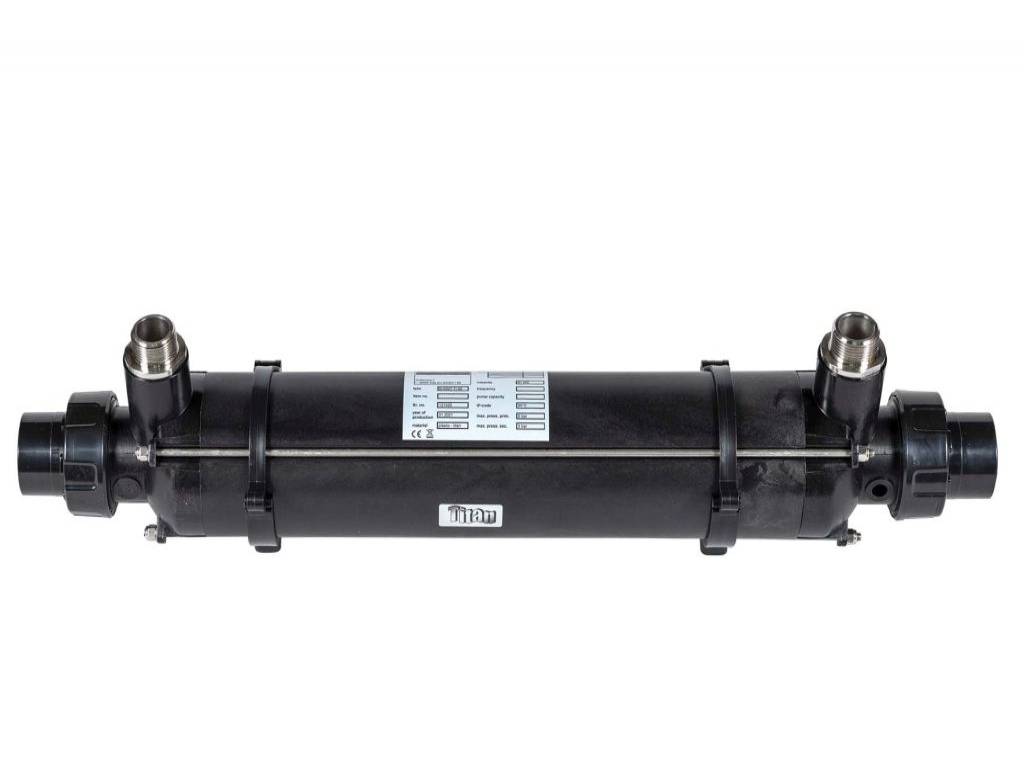

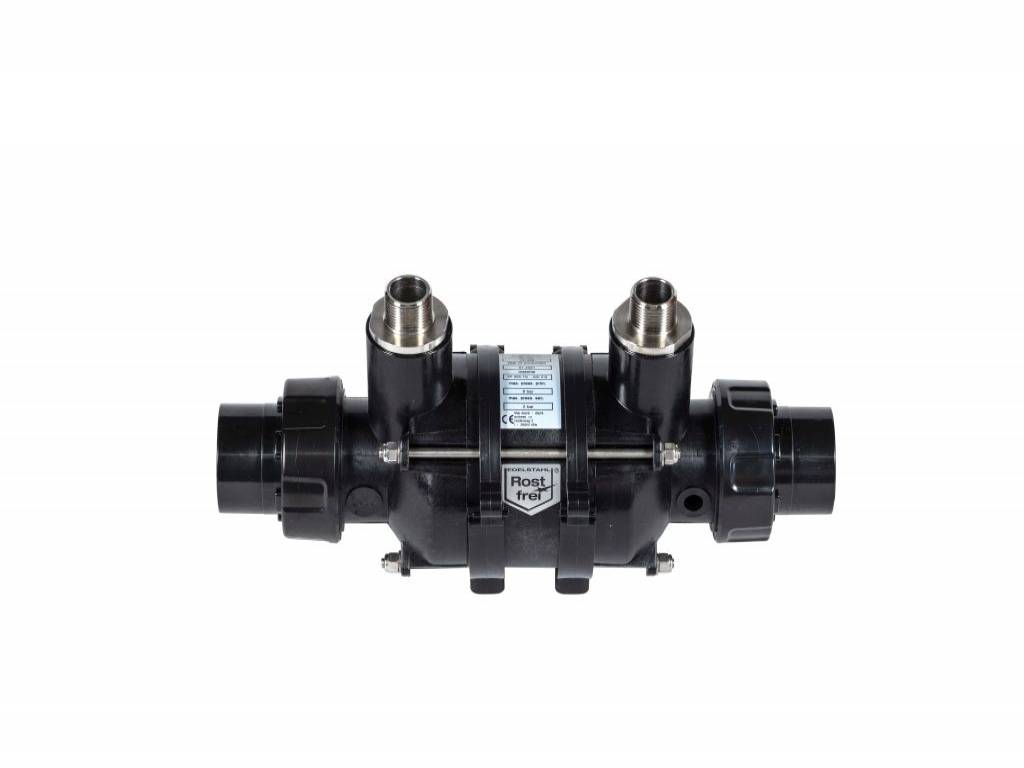

GEMAS Heat Exchangers, Shell and Tube Type

GEMAS Heat Exchangers, Shell and Tube Type

 Made of AISI 304 quality stainless steel. Max. pressure 10 bars. Operated by 90-70 °C hot water from the boiler. Connection cuffs are not included.

description code price
(€)
pieces
(box)
weight
(kg)
volume
(m³)
22.000 kcal/h 1 1/2” havuz - 3/4” kazan tarafı 101210 190.00 1
40.000 kcal/h 1 1/2” havuz - 3/4” kazan tarafı 101217 270.00 1
GEMAS Heat Exchangers, Shell and Tube Type - 65,000 kcal/h: Connections: Pool side 1 1/2"- boiler side 1" 101212 693.19 1
80.000 kcal/h 2” havuz - 1” kazan tarafı 101218 300.00 1
110.000 kcal/h 2” havuz - 1” kazan tarafı 101219 345.00 1
GEMAS Heat Exchangers, Shell and Tube Type - 180,000 kcal/h: Connections: Pool side 2"- boiler side 2x1 101214 1,411.10 1
220.000 kcal/h 2” havuz - 2 x 2” kazan tarafı 101220 680.00 1
250.000 kcal/h 2” havuz - 2 x 2” kazan tarafı 101215 770.00 1
330.000 kcal/h 2” havuz - 2 x 2” kazan tarafı 101221 1,025.00 1
400.000 kcal/h 2” havuz - 2 x 2” kazan tarafı 101216 1,240.00 1
GEMAS Heat Exchangers, Shell and Tube Type- St. Steel Wall Clampset 10121101 103.00 1
