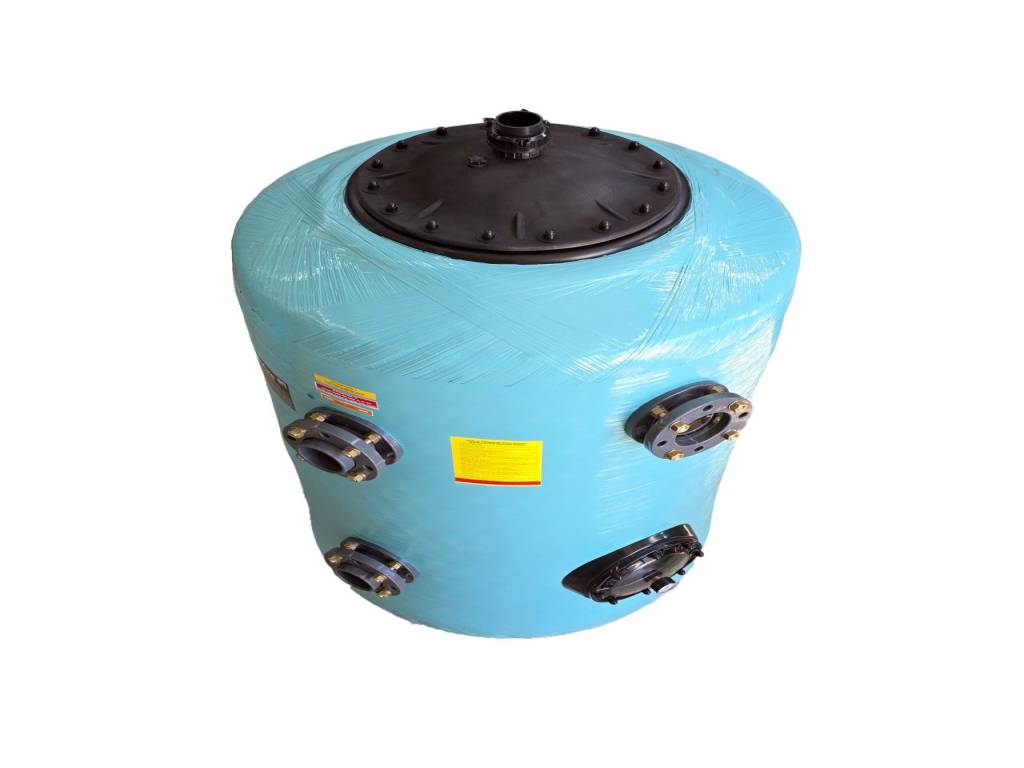

GEMAS “TURBIDRON-NORM PLUS” SAND FILTERS (According to DIN 19605 and 19643)
GEMAS “TURBIDRON-NORM PLUS” SAND FILTERS (According to DIN 19605 and 19643)

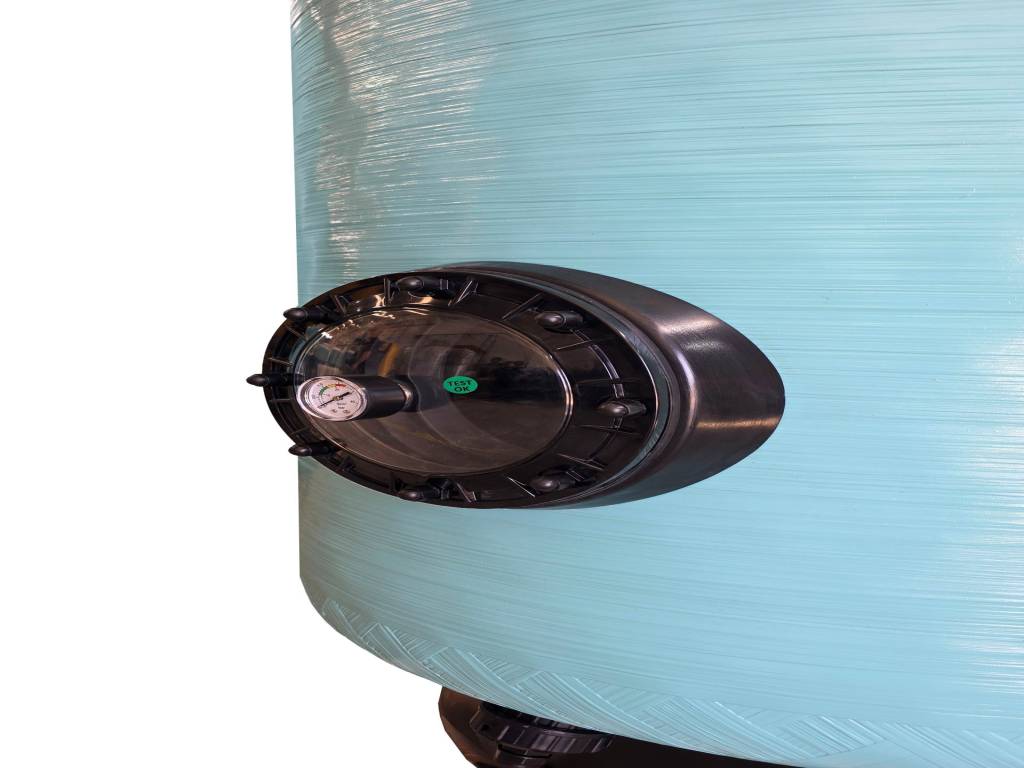

Filter shell made of fiberglass reinforced laminated polyester by fiberglass bobbin winding outside. Including pressure gauge, air purge and multiport valve. Collector plate with nozzles. Sight glass and side manhole at side. Bed depth:1,20 m. Test pressure 3,5 kg/cm2. Max. operation pressure 2,5 kg/cm2. Filtration Rate: Single Layer (Quartz Sand) : 30 m3/h/m2. Multilayer (Quartz Sand + Anthracite and/or zeolite) : 40 m3/h/m2.
| description | code | price (€) |
weight (kg) |
volume (m³) |
SPARE PART
|
|---|---|---|---|---|---|
| Ø 900 mm - 19 m3/h - 25 m3/h | 021512 | Sign in to see the price | 100.000 | 0.000 | |
| Ø 1000 mm - 24 m3/h - 32 m3/h | 021513 | Sign in to see the price | 130.000 | 0.000 | |
| Ø 1200 mm - 37 m3/h - 49 m3/h | 021514 | Sign in to see the price | 180.000 | 0.000 | |
| Ø 1400 mm - 46 m3/h - 61,5 m3/h | 021515 | Sign in to see the price | 235.000 | ||
| Ø 1600 mm - 63 m3/h - 84 m3/h | 021516 | Sign in to see the price | 330.000 | ||
| Ø 1800 mm - 76 m3/h - 101 m3/h | 021517 | Sign in to see the price | 440.000 | ||
| Ø 2000 mm - 94 m3/h - 125 m3/h | 021518 | Sign in to see the price | 570.000 | ||
| Ø 2200 mm - 114 m3/h - 152 m3/h | 021519 | Sign in to see the price | 685.000 | ||
| Ø 2400 mm - 136 m3/h - 181 m3/h | 021520 | Sign in to see the price | 770.000 | ||
| Ø 2500 mm - 147 m3/h - 196 m3/h | 021521 | Sign in to see the price | 830.000 | ||
| Ø 2350 mm - 130 m3/h - 173 m3/h | 021523 | Sign in to see the price | |||
| Ø 3000 mm - 212 m3/h - 283 m3/h | 021522 | Sign in to see the price |
