Yedek Parça Listesi

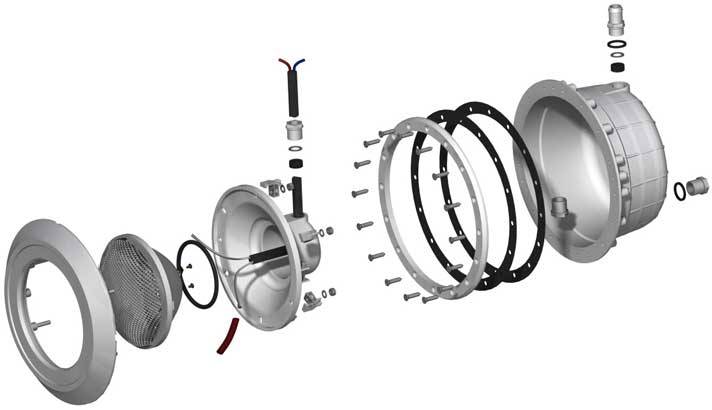

"052118" List of Materials

return back
code description quantity price pieces weight volume
05111108 NUT FOR CABLE OUTLET 1 1.20 1
05111002 PAR 56 AMPUL 1 0.00 12 8.194 0.046
0511106 LIGHT CABLE 2X4MM - H07RN-F 3 0.00 100 21.200
02120006 M6 INOKS PUL 3 0.02
0413204 M6 INOKS SOMUN 3 0.05
0414103 INOX FLAT HEAT SHEET SCREW - 6X27 (DIN7982) 17 1.00
051110021 PAR 56 BULB SCREW M4X8,5 2 0.20
0511108 CABLE NUT FOR ANCHOR NOZZLE 1 0.80
05111104 CONNECTION TERMINAL 5MM 1 1.50
05111109 GLAND SEAL JOINT 2 0.60
05111111 HOSE CONNECTION 1 1.20
05111112 BLIND NUT FOR ALTERNATIVE CABLE OUTLET 1 1.20
05111113 WIRE PROTECTOR Ø 6 MM 1 1.80
05111402 O-RING FOR BULB COVER, Ø 90X11 MM 1 3.00
05111403 STD, 2002 BULB COVER 1 12.00
05111407 STD, 2002 FASTENING CLIP 3 0.60
05111801 STANDARD 2004 LIGHT FACE RING 1 16.00
05211104 STD, 95 UNDERWATER LIGHT HOSE CONNECTION GASKET 2 0.40
05211114 PLASTIC WASHER FOR 2X4 CABLE 2 0.20
05211402 FLANGE FOR LINER TYPE STD, 2002 1 6.00
05211403 GASKET FOR FLANGE STD, 2002 10 5.00
05211410 STD, 2002 NICHE FOR LINER POOLS 2 22.00
