GEMAS FILTREX - HB SAND FILTERS
GEMAS FILTREX - HB SAND FILTERS

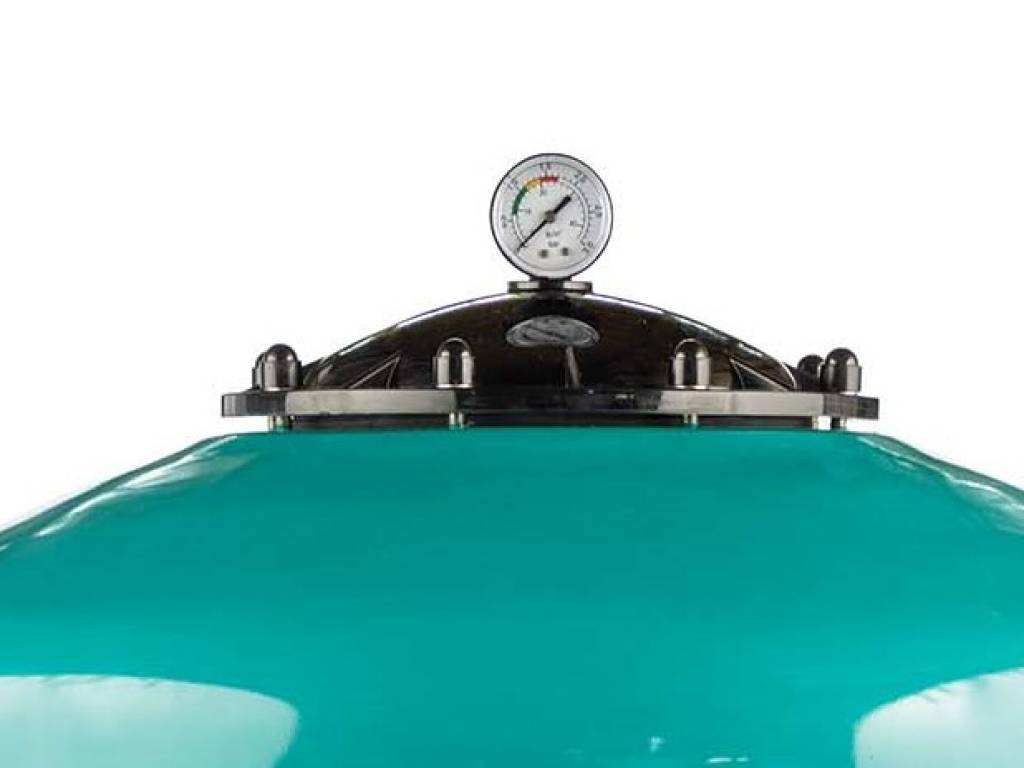

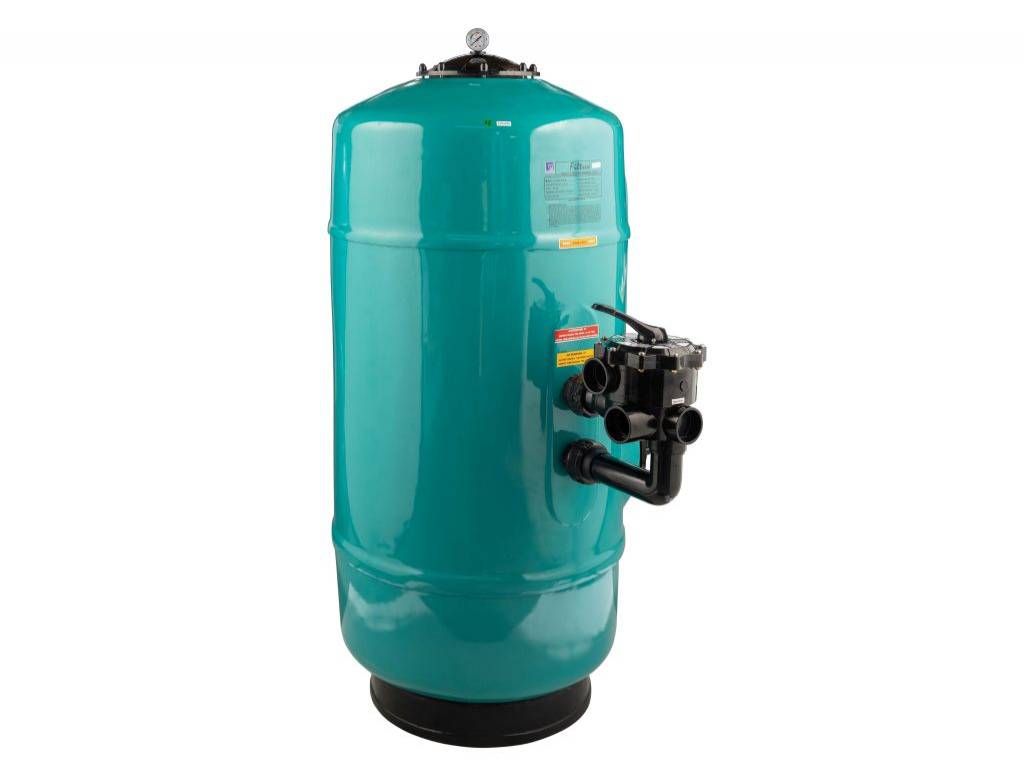

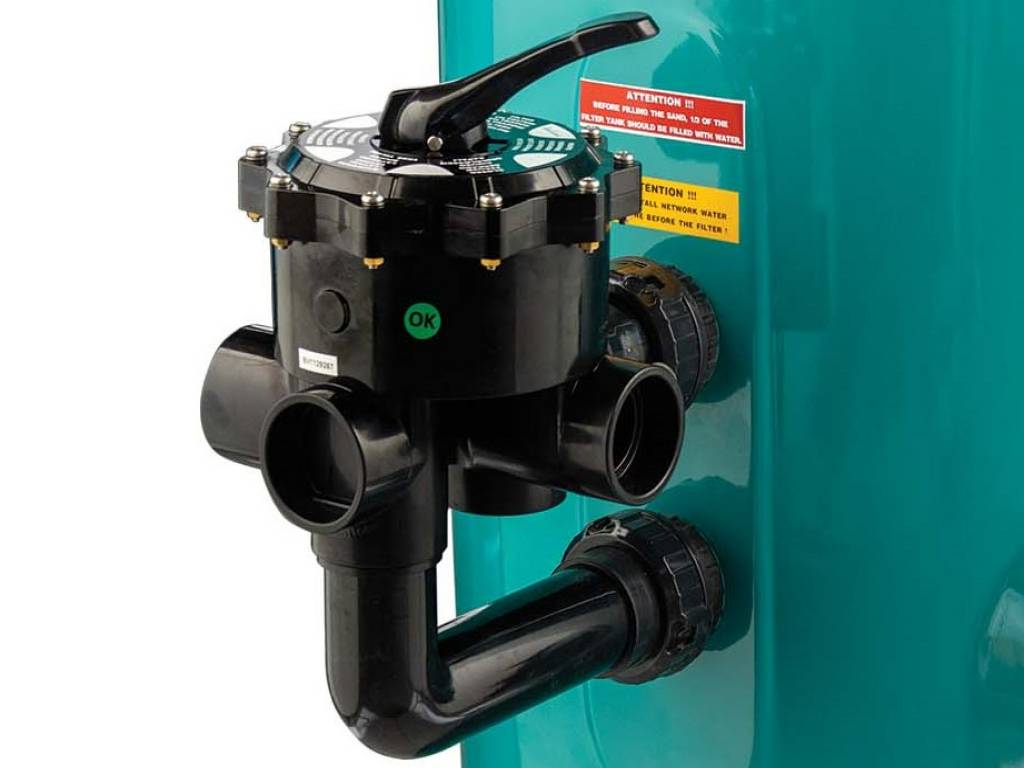

Filter shell made of fiberglass reinforced laminated polyester, including pressure gauge, air purge and multiport valve. Collector with laterals. Bed depth 100 cm. Test pressure 3.5 kg/cm2. Max. operation pressure 2,5 kg/cm2. Please ask price for 4,0 and 6,0 kg/cm2 operation pressures. Sight Glass is optional.
| descripción | código de almacenamiento | precio (€) |
peso (kg) |
volumen (m³) |
PİEZAS DE REPUESTO
|
|---|---|---|---|---|---|
| Ø500 mm - 1,5" multiport valve - 7 m³/h w/single layer 10 m³/h w/multilayer | 021311HB | Regístrese para ver el precio | 30.000 | 0.040 | Analizar |
| Ø630 mm - 1,5" multiport valve - 11 m³/h w/single layer 15 m³/h w/multilayer | 021312HB | Regístrese para ver el precio | 35.200 | 0.584 | Analizar |
| Ø710 mm - 2” multiport valve - 14 m³/h w/single layer 20 m³/h w/multilayer | 021313HB | Regístrese para ver el precio | 55.000 | 0.852 | Analizar |
| Ø800 mm - 2” multiport valve - 18 m³/h w/single layer 25 m³/h w/multilayer | 021314HB | Regístrese para ver el precio | 71.000 | 1.230 | Analizar |
| Ø900 mm - 2” multiport valve - 22 m³/h w/single layer 32 m³/h w/multilayer | 021315HB | Regístrese para ver el precio | 78.500 | 1.420 | Analizar |
| Ø1000 mm - w/out multiport valve - 32 m³/h w/single layer 39 m³/h w/multilayer | 021316HB | Regístrese para ver el precio |
